STABILTRAK 101

STABILTRAK 101

High-Strength Two-Componaent Polyurethane Adhesive for Railway Ballast Stabilization

Overview
STABILTRAK 101 is a cutting-edge, two-component polyurethane adhesive designed to stabilize and reinforce railway embankments and ballast. Engineered for high mechanical performance, it ensures durable bonding of crushed stone, aggregates, and substructures — even under dry or slightly damp conditions. Its low viscosity and excellent substrate penetration allow for precise application and long-lasting results in challenging environments.

Key Applications

• Bonding and stabilizing railway ballast

• Strengthening subgrade layers under tracks

• Consolidating loose aggregates and crushed stone

• Ideal for dry or slightly moist soil conditions

Product Advantages

• High mechanical strength for long-lasting support

• Low viscosity for deep penetration into aggregates

• Adjustable curing time depending on site conditions

• Low flammability and closed-cell foam structure upon contact with moisture

• Rigid-elastic bonding: ensures balance between firmness and flexibility

• Fast application using dual-component spray systems

• Moisture-reactive expansion: improves gap filling and stability

Performance Properties

Property	Value / Range
Mixing Ratio (by weight)	1 : 0.45
Reaction Start Time	Approx. 20–40 minutes (at 20°C)
Foam Expansion (upon contact)	Low to medium (closed-cell, semi-rigid)
Compressive Strength	Min. 30 MPa
Flexural Strength	Min. 140 MPa
Shore D Hardness	~90 °D
Density	~1130 kg/m³
Flash Point	>200°C
Application Temperature	+6°C to +45°C
Storage Temperature	+15°C to +25°C

Packaging Options

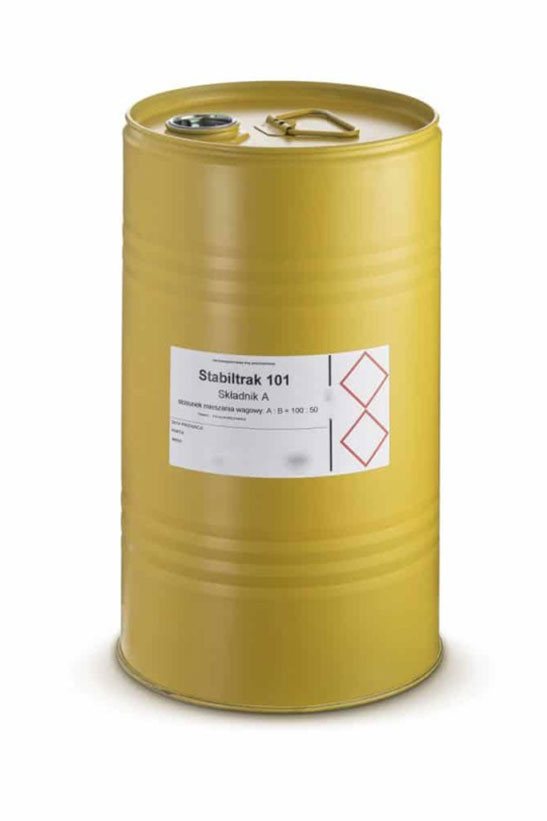

Available in multiple formats from 20L up to 1000L. Both components (A and B) are supplied in sealed drums to ensure long shelf life and chemical stability.

Storage & Handling

• Store in dry areas between +15°C to +25°C

• Do not store below +5°C

• Use opened containers within 24 hours

• Ensure components are well mixed before use

Recommended Use Cases

• Railway transition zones and critical crossings

• Embankments prone to dynamic load settlement

• Ballast zones adjacent to bridges, tunnels, or road intersections

• High-traffic urban rail curves or heavy-duty freight lines

Why Choose STABILTRAK 101?

By tripling the stability of railway ballast and substructures, STABILTRAK 101 significantly reduces maintenance costs, minimizes service disruptions, and extends the life of railway infrastructure — even under harsh environmental and mechanical stress.
