Wall

Modular Polycarbonate System for Walls

 The WALL series offers a modular tongue-and-groove polycarbonate panel system, designed specifically for vertical applications such as curtain walls, industrial facades, and architectural glazing. With a standard width of 500 mm and a variety of thicknesses (16, 20, 25, 30, 40 mm), these panels provide outstanding thermal insulation, light transmission, and durability.

Key Features

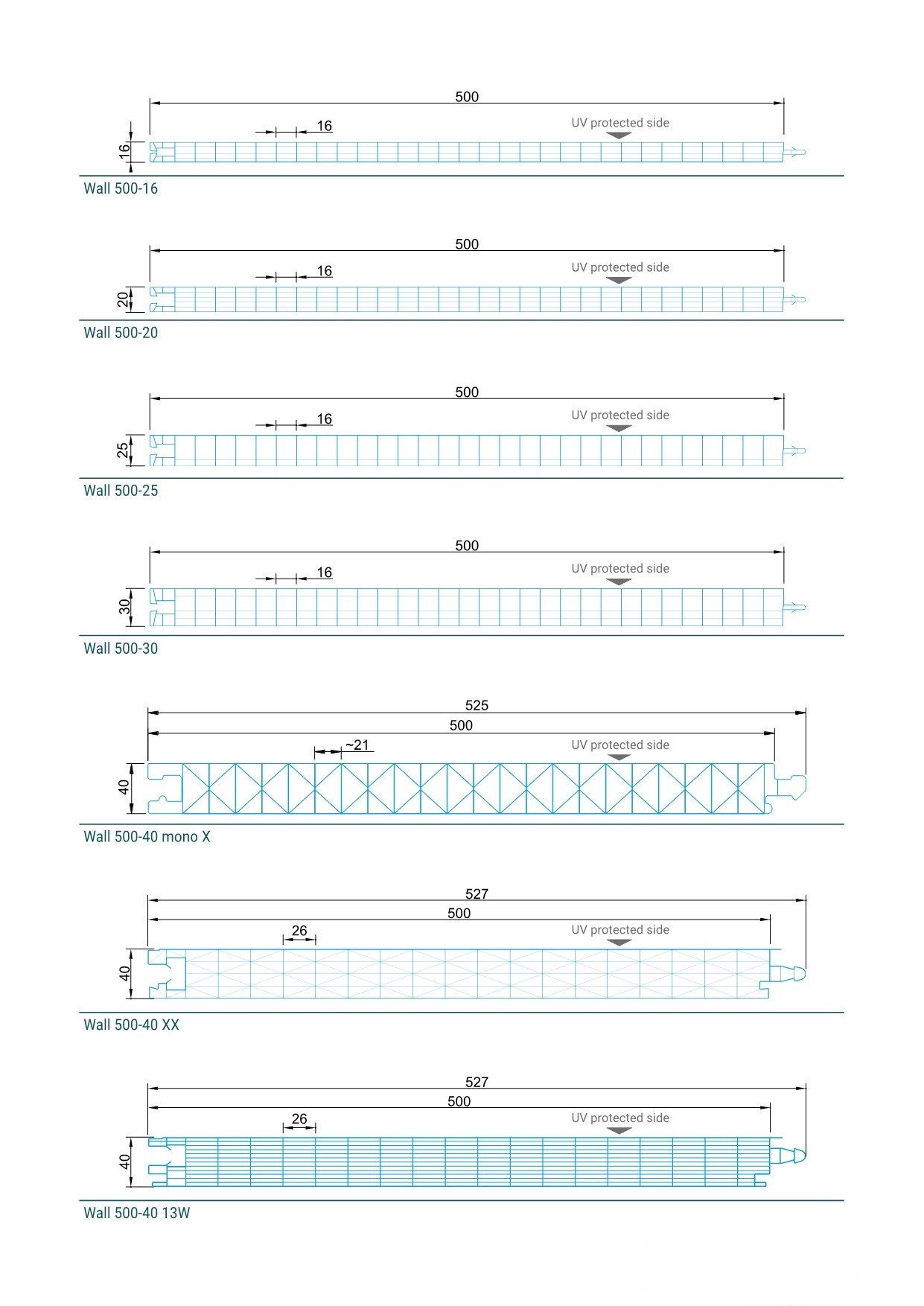

• Multiple Thicknesses: 16, 20, 25, 30, and 40 mm options

• Advanced Structure: 6-wall, 4-wall, double X, and 13-wall configurations for optimal performance

• UV Protection: Coextruded UV protection on the external side

• Thermal Insulation: Certified thermal transmittance as low as 0.91 W/m²K (13-wall, 40 mm)

• Light Transmission: Available in clear and opal, with up to 62% light transmission

• Service Temperature: -40°C to +120°C

• Warranty: 10-year limited warranty against breakage, yellowing, and loss of light transmission

Application & Strengths

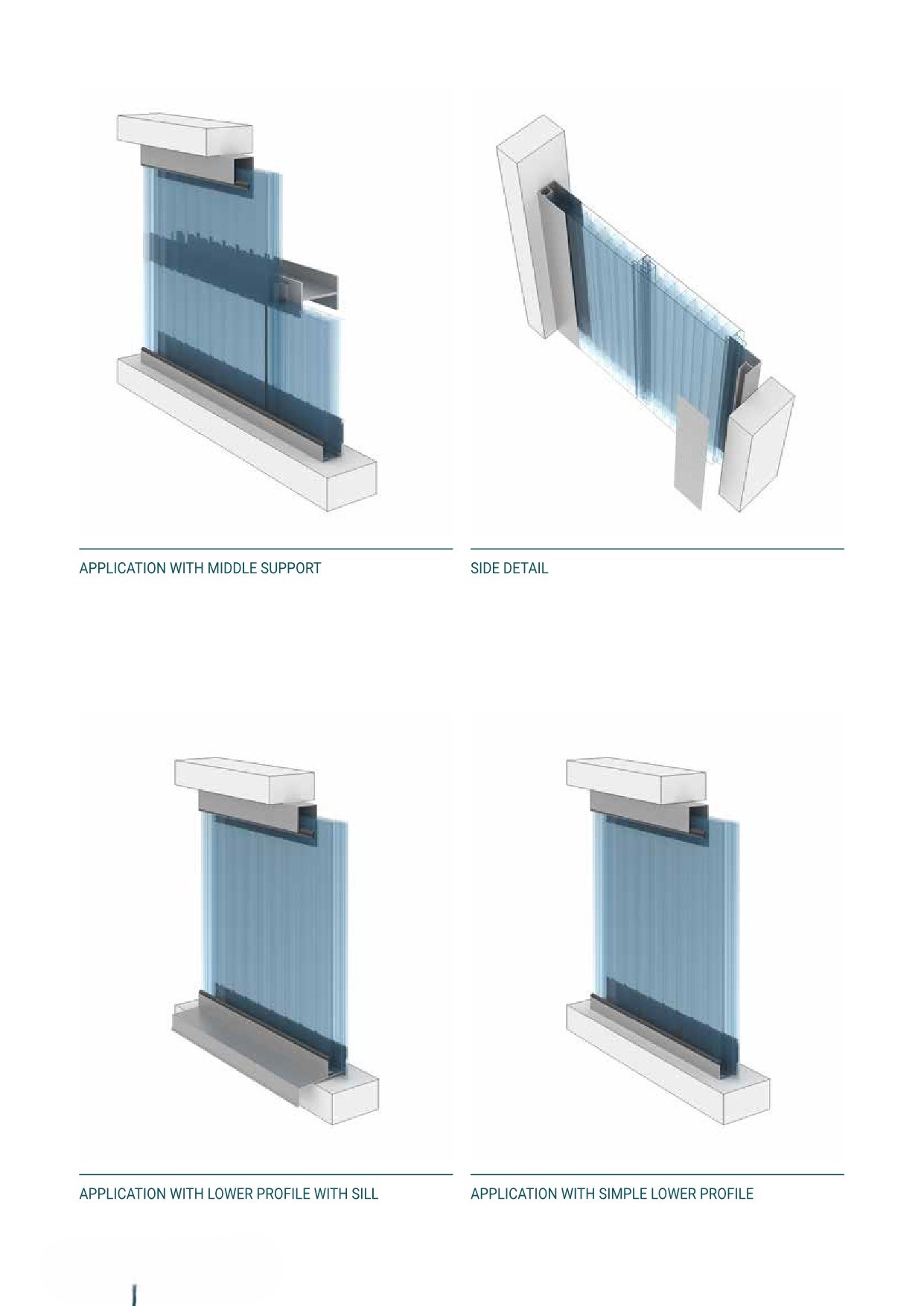

• Ideal for curtain walls, vertical glazing, and industrial buildings

• Fast and effective installation with a complete range of aluminum and steel accessories

• Lightweight yet highly resistant to impact and weather

• Sustainable and recyclable material

• Not guaranteed to be fully waterproof if used as a roof solution

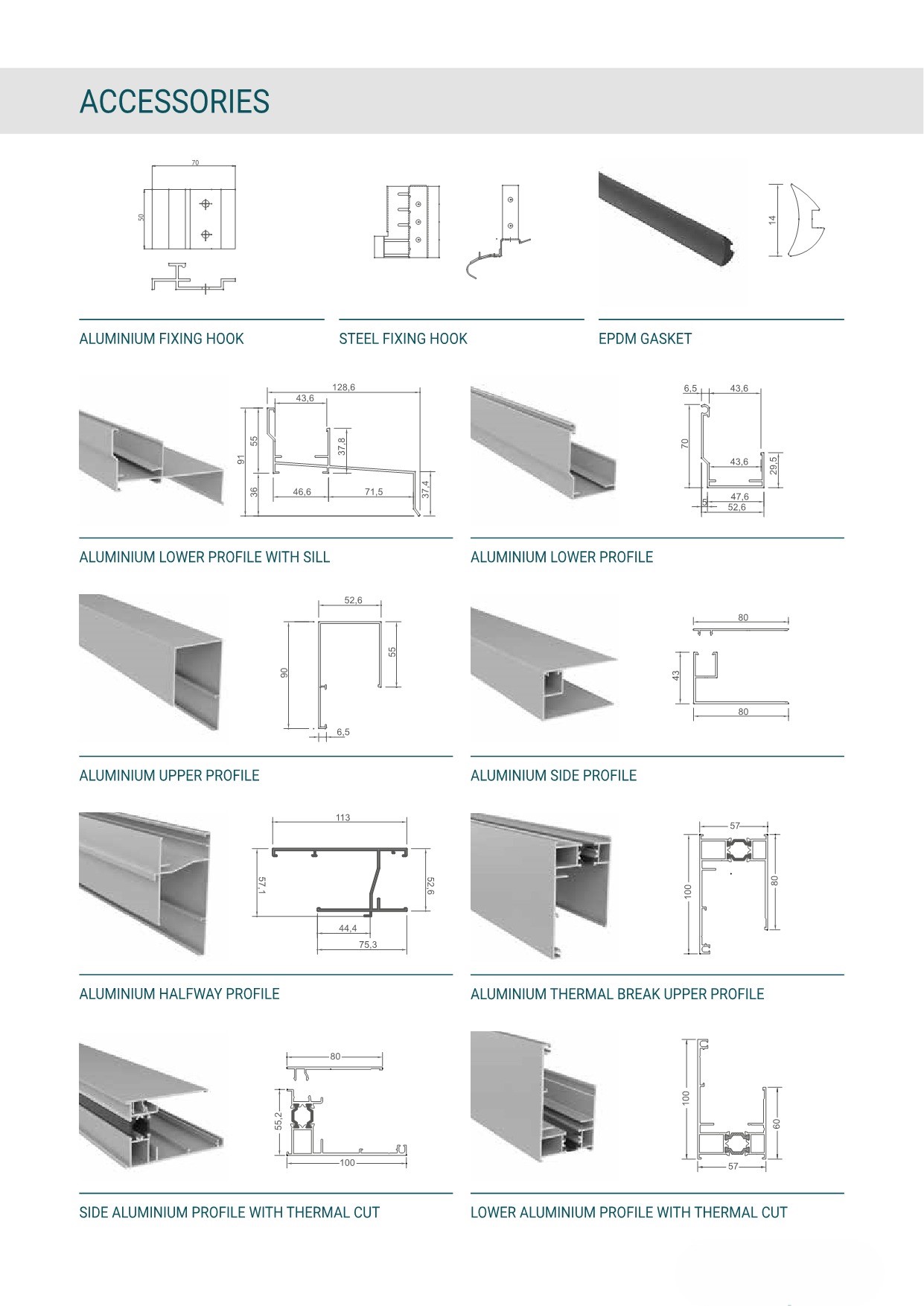

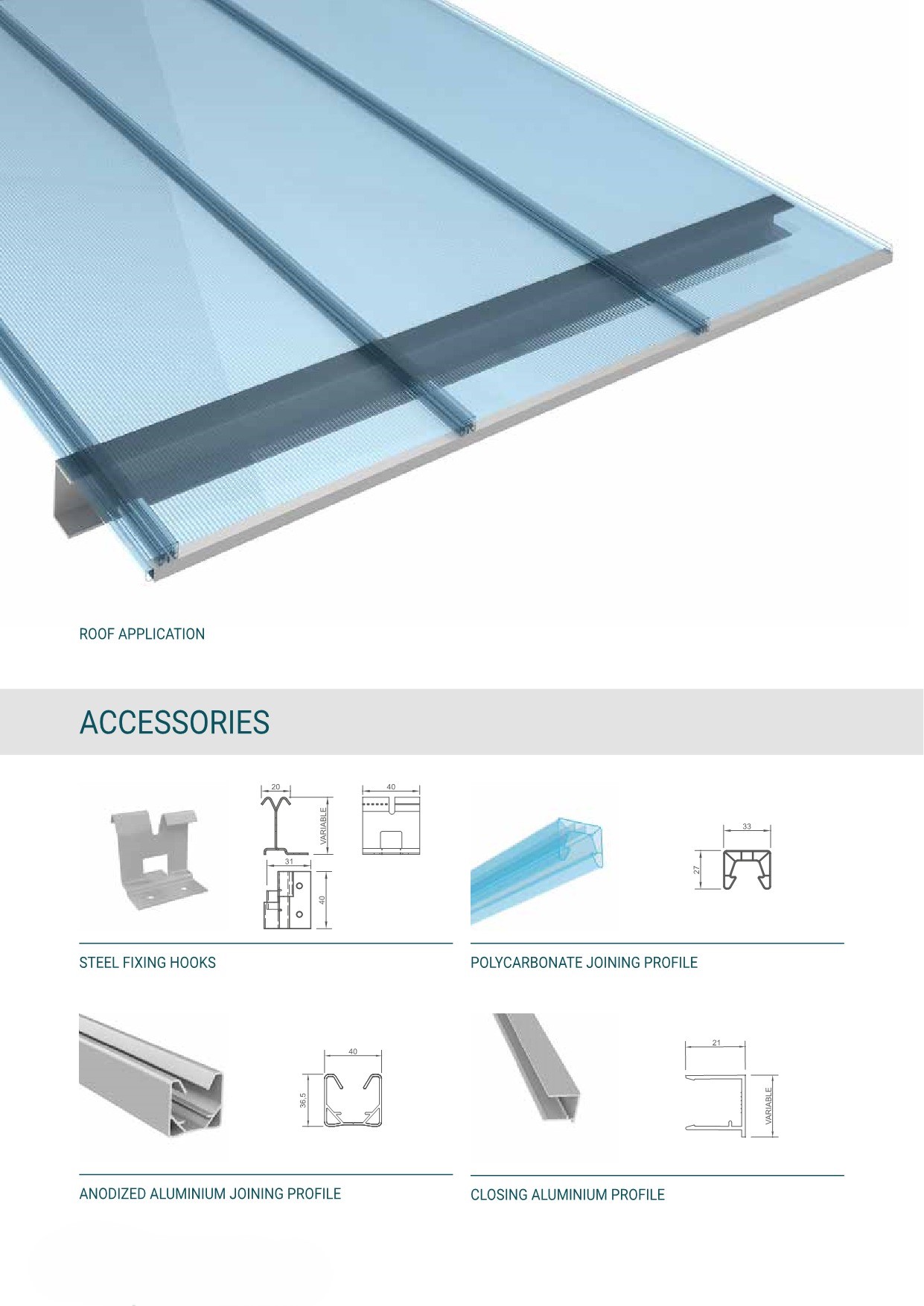

Accessories
A full range of accessories is available, including:

• Aluminum and steel fixing hooks

• EPDM gaskets

• Lower, upper, side, and halfway profiles (with or without thermal break)

• Profiles with sill or thermal cut for enhanced performance

Typical Applications

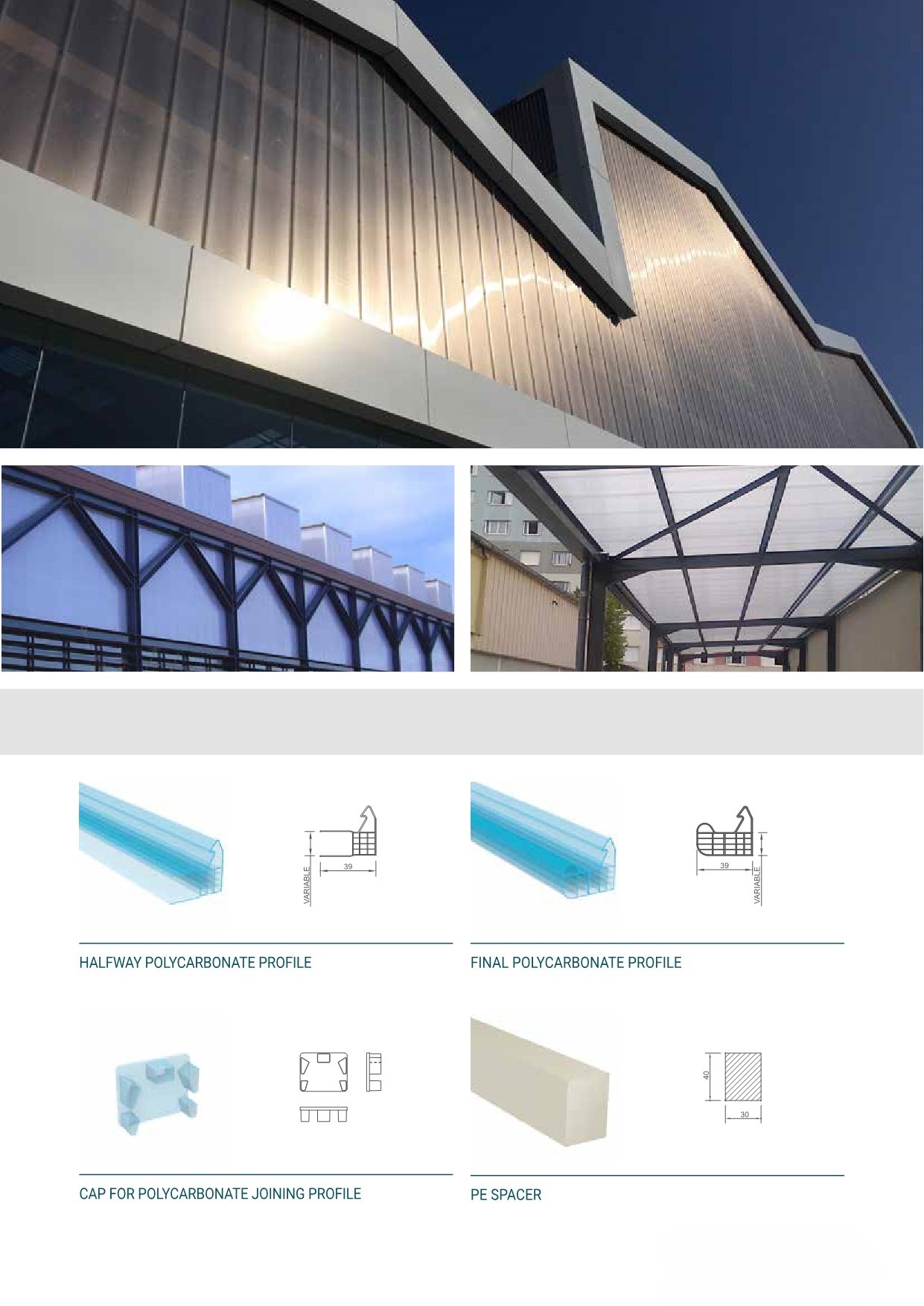

• Industrial and commercial facades

• Sports halls and public buildings

• Partition walls and architectural features

• Any project requiring high thermal insulation and light diffusion

For detailed technical data, installation options, and available accessories, please refer to the product datasheet or contact our technical team.
