System

Self-Supporting Modular PC System for Flat and Curved Roofing & Façades

SYSTEM is an extremely versatile and self-supporting modular polycarbonate panel system, ideal for both flat and curved roofing as well as façade applications—even for large-scale projects. Advanced extrusion technology ensures perfect waterproofing and high resistance to wind and snow loads, while coextruded UV protection preserves the panel’s physical and mechanical properties over time.

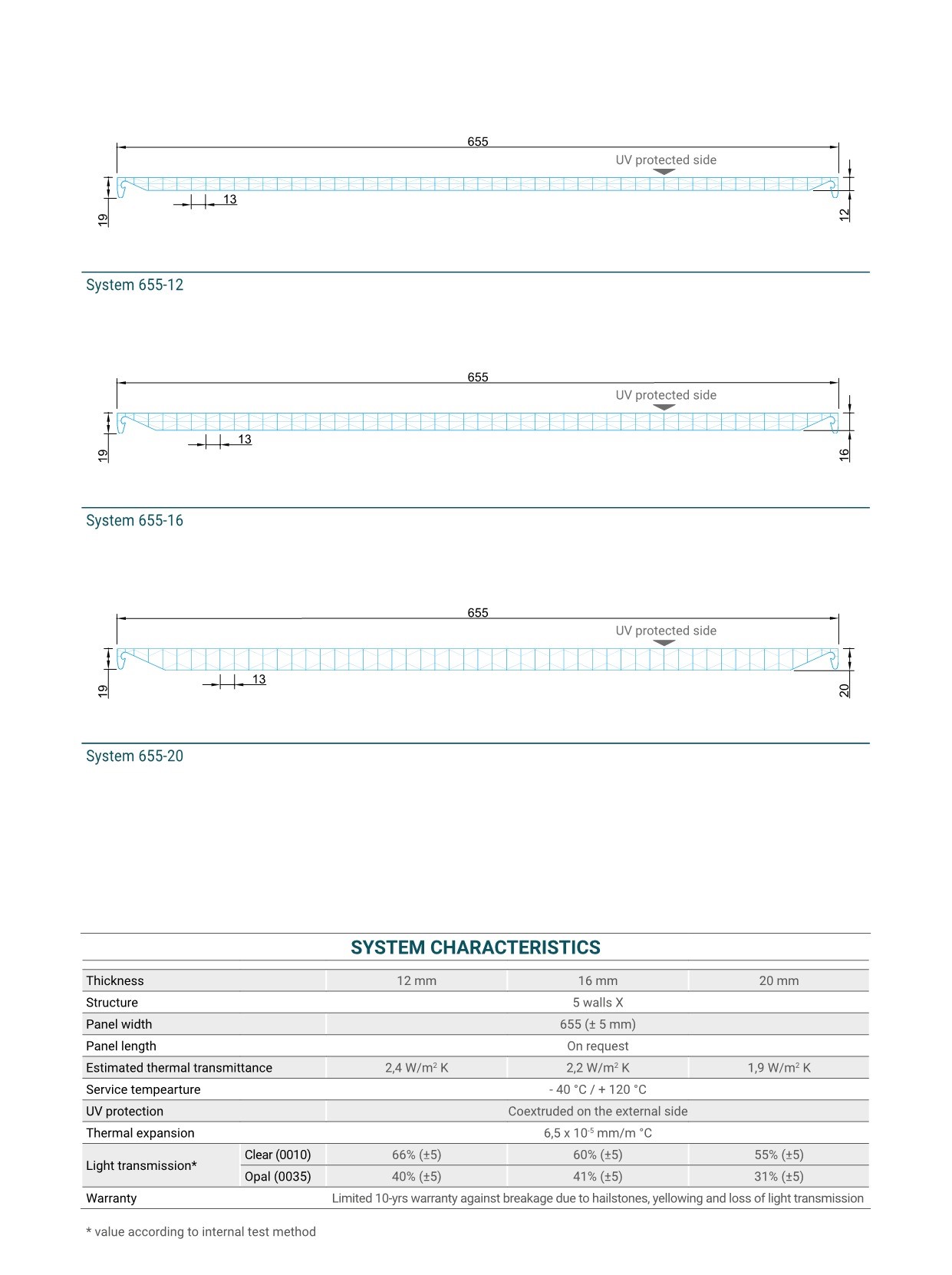

Key Features

• Available Thicknesses: 12 mm, 16 mm, 20 mm

• Panel Width: 655 mm

• Structure: 5-wall X structure for superior strength and insulation

• UV Protection: Coextruded on the external side

• Light Transmission: Up to 66% (clear), 41% (opal)

• Thermal Insulation: Certified thermal transmittance as low as 1.9 W/m²K (20 mm)

• Service Temperature: -40°C to +120°C

• Warranty: 10-year limited warranty against breakage, yellowing, and loss of light transmission

Application & Strengths

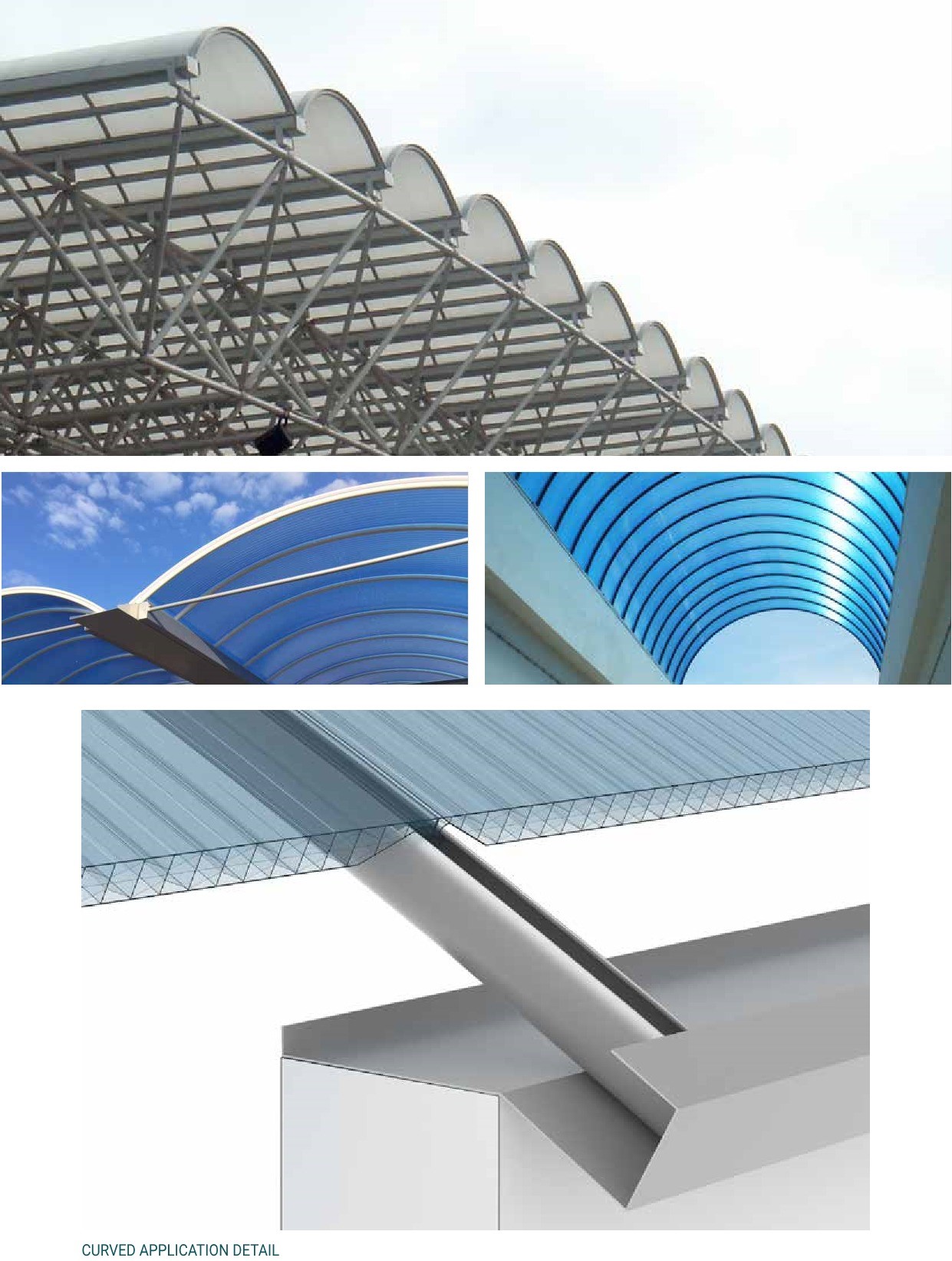

• Suitable for vertical glazing, skylights, flat and curved roofs (minimum bending radius: 2000 mm for 12 mm, 3500 mm for 16 mm, 5000 mm for 20 mm)

• Excellent waterproofing and resistance to wind, snow, and impact

• High light transmission and long-term durability

• Fast and easy installation with a complete range of profiles and accessories

• Maintains performance under temperature variations and adverse weather

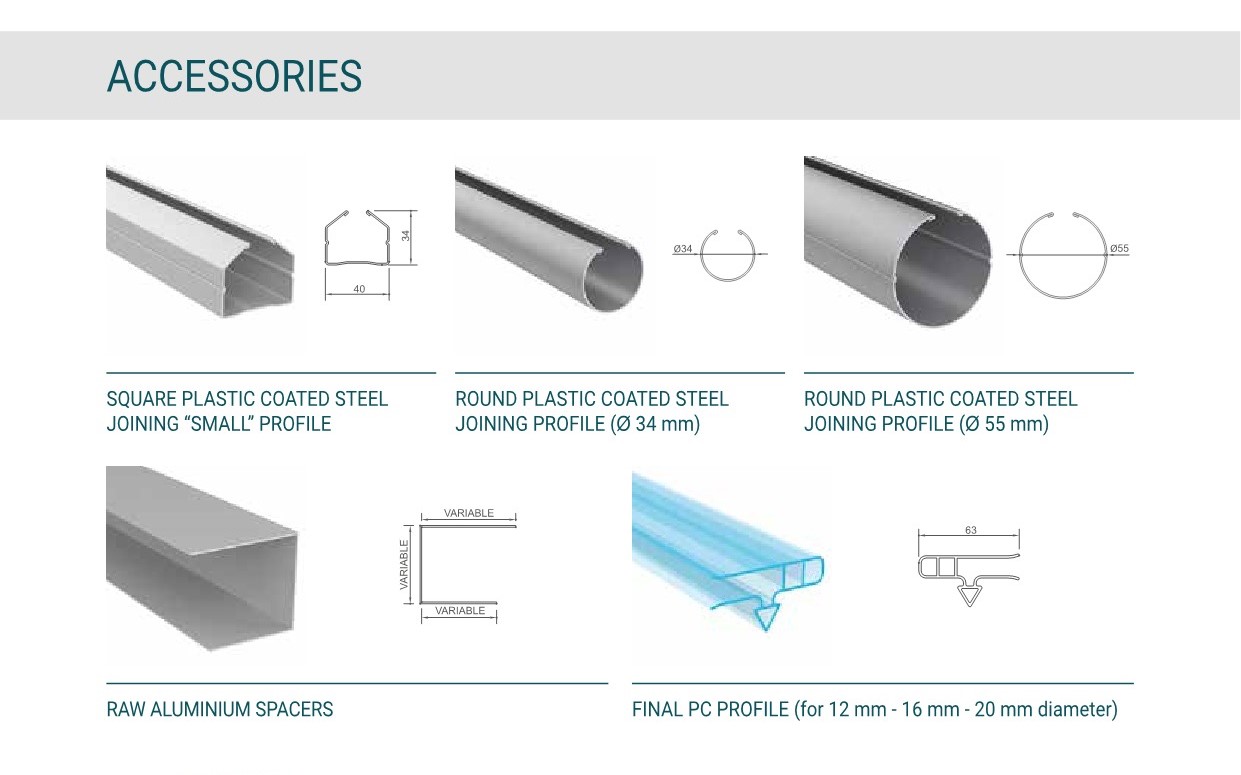

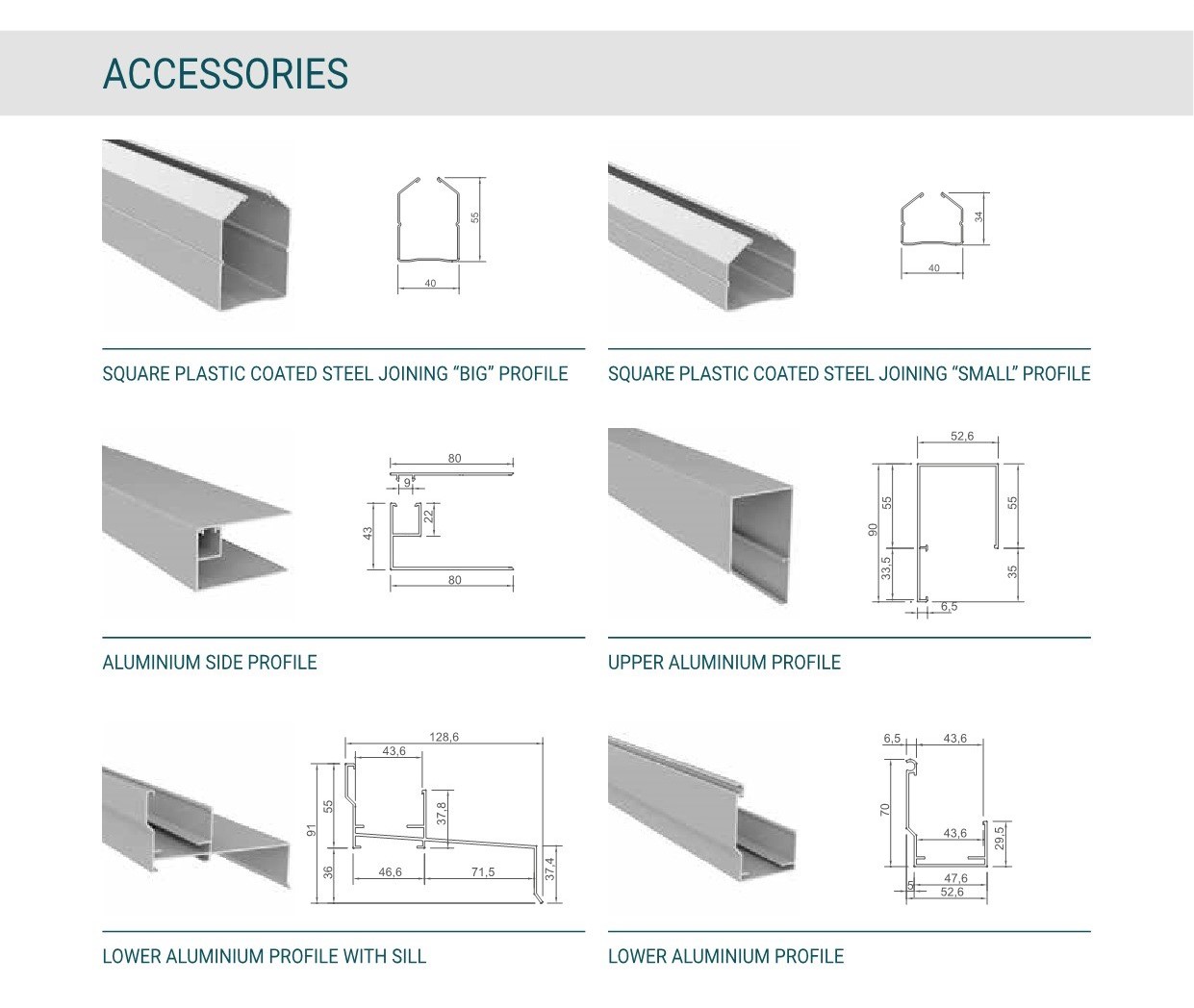

Accessories

• Square and round plastic-coated steel joining profiles

• Anodized aluminium perimeter and sill profiles

• PE spacers, EPDM gaskets, and final PC profiles

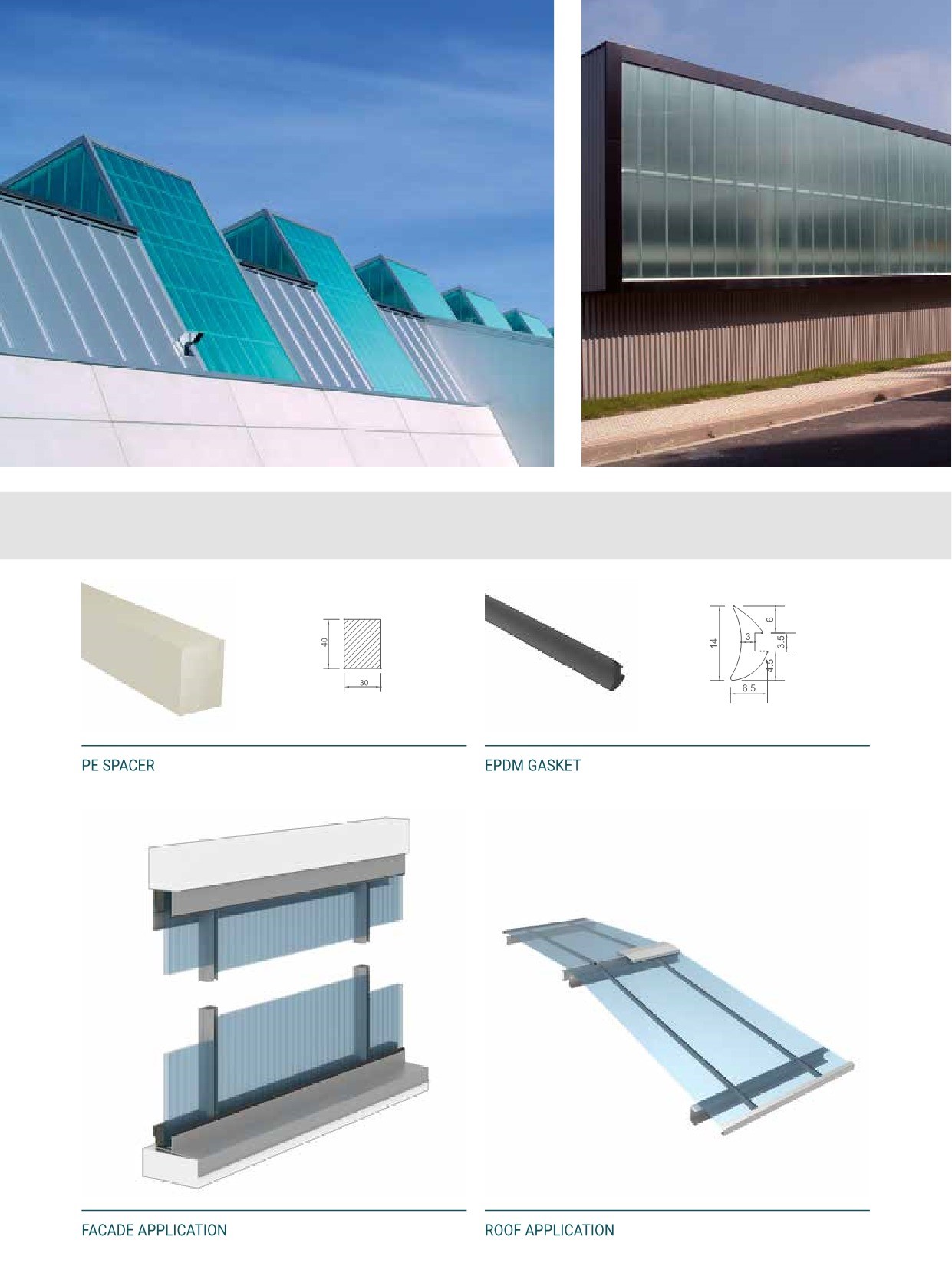

Typical Applications

• Industrial and commercial roofing (flat or curved)
•
• Façades and vertical glazing

• Skylights and daylighting systems

For detailed technical data, installation options, and available accessories, please refer to the product datasheet or contact our technical team.
