Onda

Multiwall Corrugated Polycarbonate Sheets for Industrial Roofing

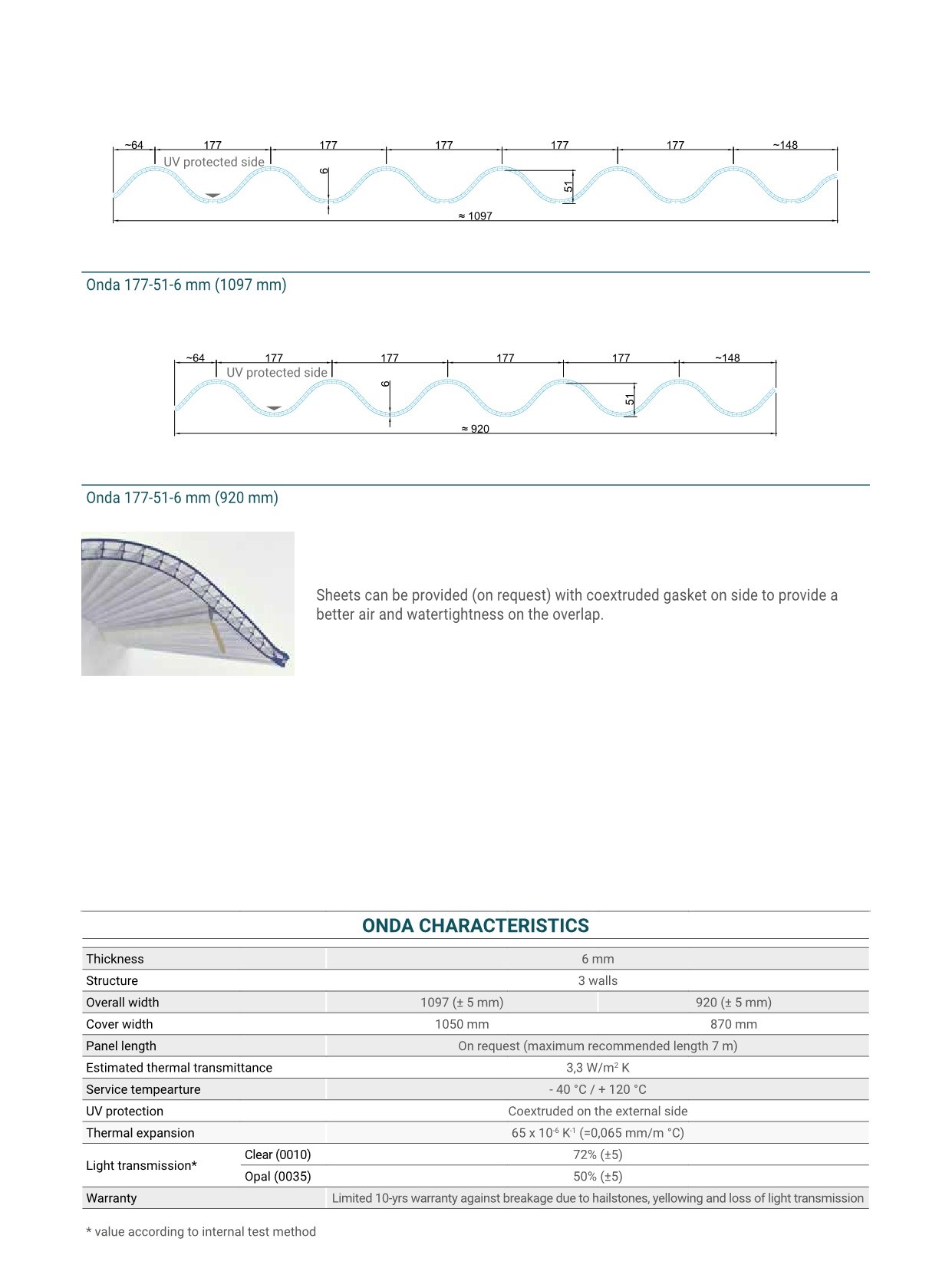

ONDA panels are polycarbonate multiwall corrugated sheets, extruded according to European standard 177/51. Available in different widths (5½, 6½, and 7½ waves), they offer versatile overlapping solutions for a wide range of industrial roofing needs. ONDA sheets can also be cold bent with a 3500 mm radius, making them suitable for both flat and curved applications.

Key Features

• Available Thickness: 6 mm

• Panel Widths: 920 mm, 1097 mm (cover width: 870 mm, 1050 mm)

• Structure: 3-wall honeycomb for strength and insulation

• Corrugated Shape: Excellent load resistance and stability

• UV Protection: Coextruded on the external side for long-lasting clarity and durability

• Light Transmission: Up to 72% (clear) and 50% (opal)

• Service Temperature: -40°C to +120°C

• Warranty: 10-year limited warranty against breakage, yellowing, and loss of light transmission

Application & Strengths

• Designed for industrial roofing and skylights, both flat and curved (bending radius 3500 mm)

• Multiple width options for easy overlapping and installation

• High resistance to aging, yellowing, impact, and hail

• Fast and easy installation with a complete range of accessories

• Optional coextruded gasket for improved air and watertightness

Accessories
A full range of accessories is available, including:

• PE spacers

• Aluminium caps

• Fixing screws (for metal supports)

• Pre-painted metal half ridge

• Fiberglass head

Typical Applications

• Industrial and commercial roofing

• Skylights and daylighting systems

• Curved or flat roof designs requiring high durability and light transmission

For detailed technical data, installation options, and available accessories, please refer to the product datasheet or contact our technical team.
