Radius 1000

Self-Supporting Curved Polycarbonate Panel for Skylights

RADIUS 1000 is an extruded multiwall polycarbonate panel, pre-curved with a uniform 20 mm thickness and a 5-wall structure. Its special shape, achieved during the extrusion process, provides exceptional strength and makes it ideal for skylight applications in industrial and commercial buildings.

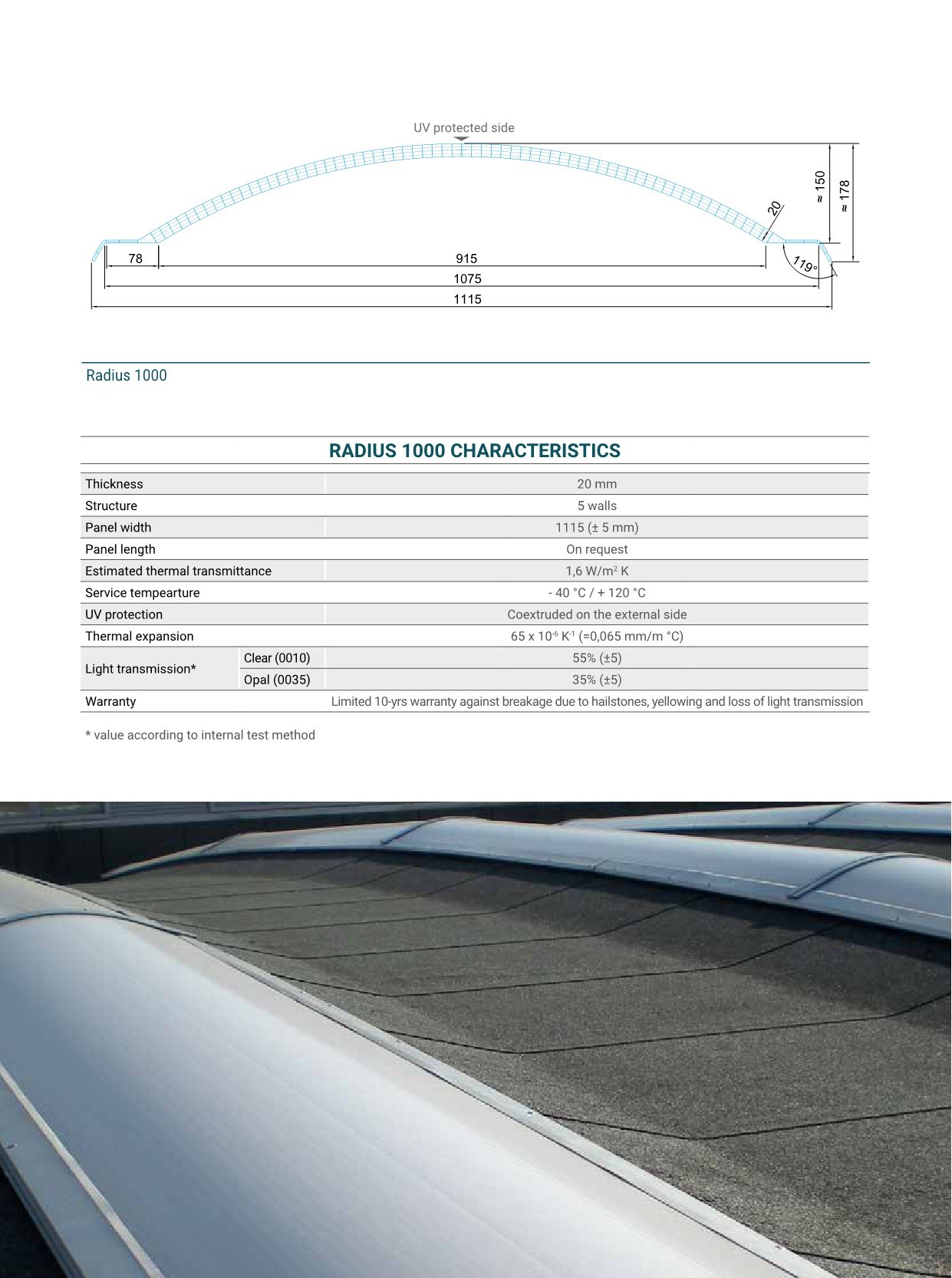

Key Features

• Thickness: 20 mm

• Panel Width: 1115 mm

• Structure: 5-wall for high strength and insulation

• UV Protection: Coextruded on the external side

• Light Transmission: Up to 55% (clear), 35% (opal)

• Thermal Insulation: Certified thermal transmittance of 1.6 W/m²K

• Service Temperature: -40°C to +120°C

• Warranty: 10-year limited warranty against breakage, yellowing, and loss of light transmission

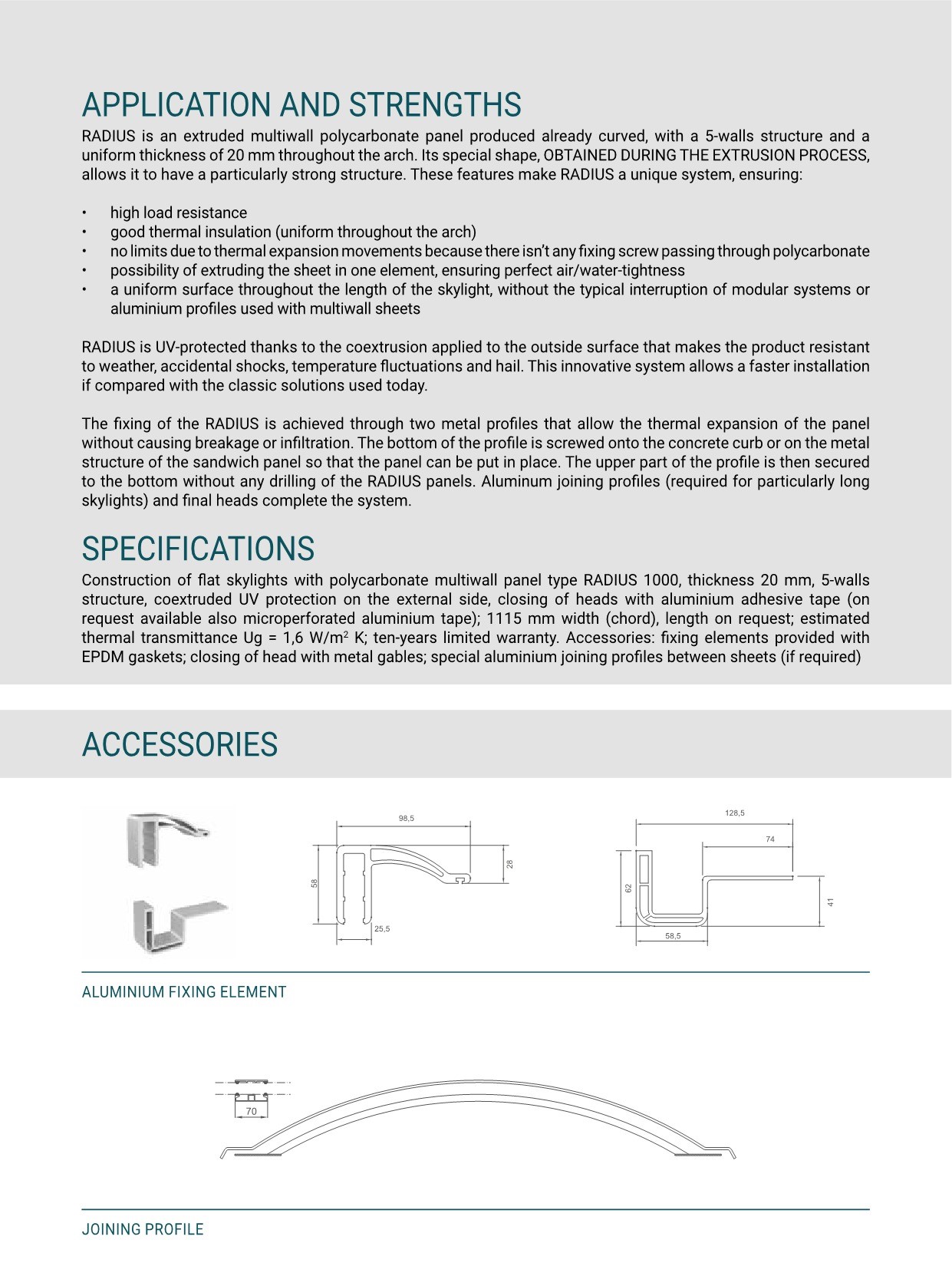

Application & Strengths

• High load resistance and uniform thermal insulation throughout the arch

• No fixing screws through the polycarbonate, allowing for free thermal expansion and perfect air/water-tightness

• Uniform surface without interruptions, unlike modular systems or aluminum profiles

• Fast and easy installation with dedicated aluminum fixing elements and joining profiles

• Resistant to weather, accidental shocks, temperature fluctuations, and hail

Accessories

• Aluminum fixing elements

• Special joining profiles

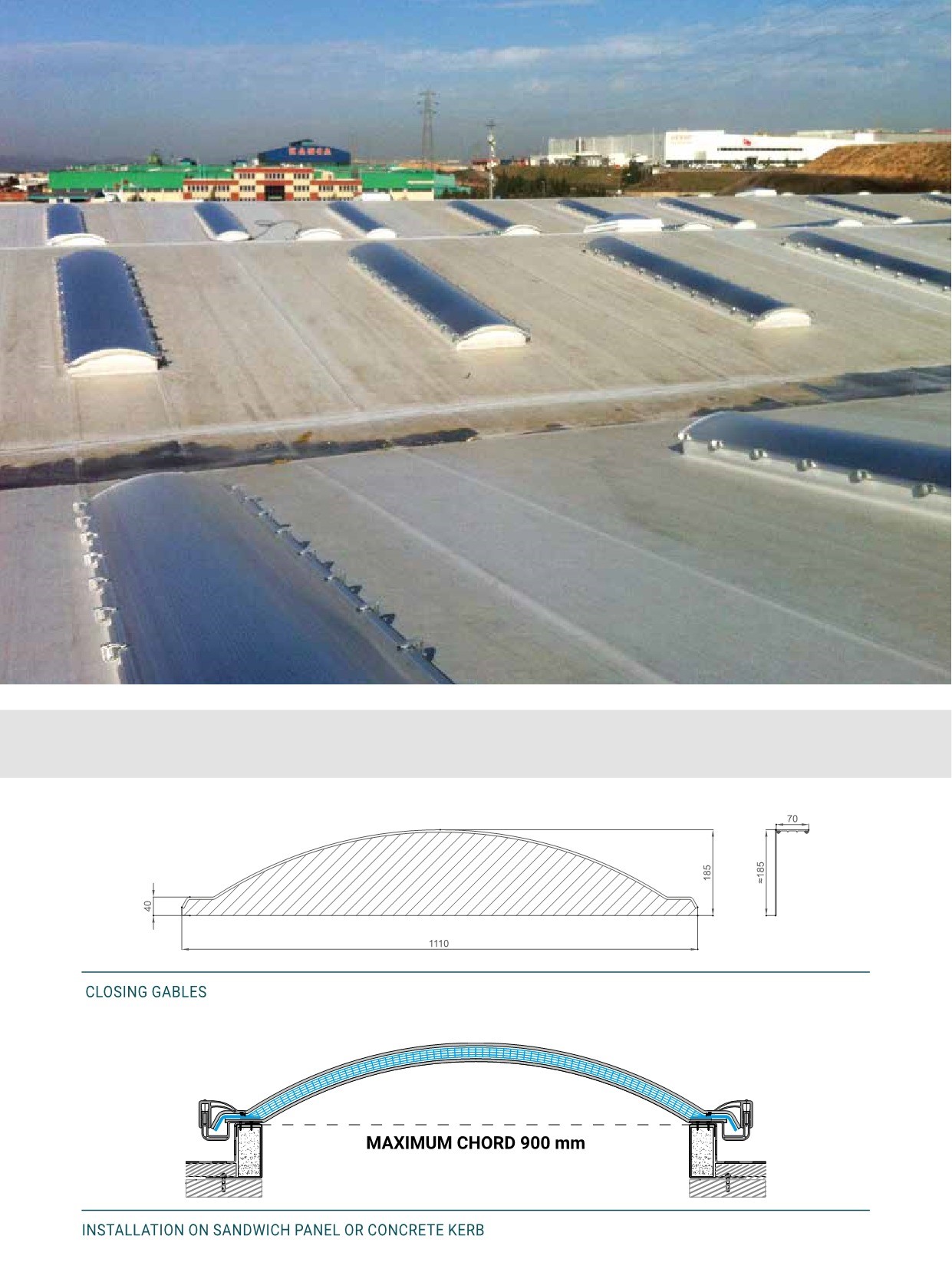

• Closing gables for ends

• EPDM gaskets

Typical Applications

• Industrial and commercial skylights
• Large-span curved rooflights
• Projects requiring high strength, insulation, and seamless aesthetics

For detailed technical data, installation options, and available accessories, please refer to the product datasheet or contact our technical team.
