Passenger Information Display
Passenger Information Display (PID)
Passenger Information Displays are a vital component of modern public transport systems. These displays make the travel experience much more convenient and reliable for passengers by providing real-time information about vehicle departure and arrival times, route changes, urgent announcements and special messages.
Key features of these displays:
📡 Real-time information display: announcement of departure times, delays or schedule changes.
🌐 Smart connectivity: possibility of communication via 4G/5G, Ethernet or GPS for full integration with the fleet management system.
☀️ High readability in any lighting conditions: whether in the shade or in direct sunlight.
💡 Adaptable for all users: equipped with audio systems and message call buttons to assist the disabled.
🔧 Rugged design: resistant to moisture, dust, different temperatures and environmental damage.
⚡ Technology diversity: In two models: E-Paper (low power consumption and durable) and LED (high brightness and excellent resolution).
"These solutions not only increase passenger satisfaction, but also improve the efficiency of the transportation system and present the image of a modern and smart city."
 |
 |
|

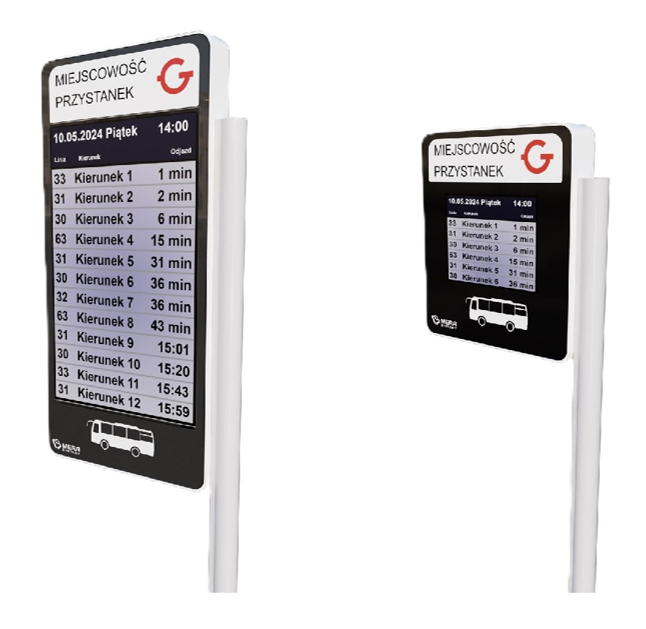

E-Paper Passenger Information Display |
|
Model: TIPE.13.01.01 / TIPE.32.02.01
Production Date: 14.01.2025
Brand: Mera Serwis / Mera Systemy
Key Features & Specifications:
Screen
Sizes: 13” (1600×1200 px) / 32” (2560×1440 px)
Technology: E-Paper, monochrome
Anti-reflective glass
Wide viewing angle: ≥175°
Update rate: 100 ms
Enclosure
Dimensions: 300×450×90 mm (13”) / 1050×500×90 mm (32”)
Weight: 12 kg (13”) / 22 kg (32”)
Material: stainless steel, UV & corrosion resistant
Protection rating: IP65, IK08
Operating Conditions
Temperature: -20°C to +55°C
Humidity: 10–100% (non-condensing)
Battery
Lifetime: up to 60 months
Over-current and reverse polarity protection
Communication Interfaces
4G/5G
Ethernet
RS485
Localization
Built-in GPS, compatible with bus-mounted locators
Accessibility
Wireless push-button for voice announcement
Automatic audio announcements
|

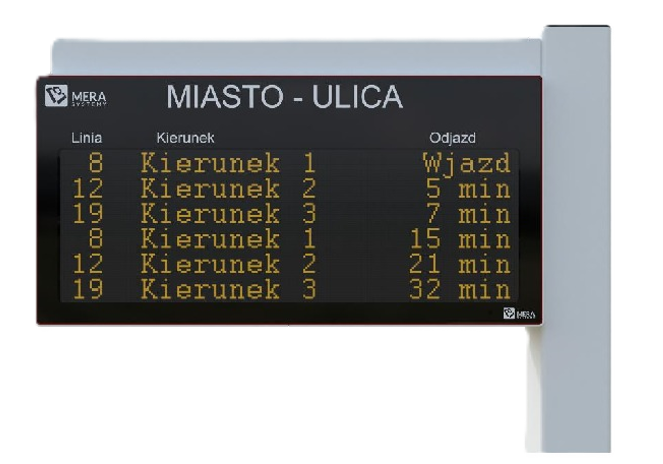

Model: TIPL.06.02.01
Production Date: 17.01.2025
Brand: Mera Serwis / Mera Systemy
Key Features & Specifications:
Screen
Technology: LED (amber text on black background)
Resolution: 64×256 px
Brightness: ≥4000 cd/m² (sunlight-readable)
Pixel pitch: 4 mm
Viewing angle: 100° (horizontal & vertical)
Minimum lifetime: 80,000 h continuous operation
Update time: 15 s
Enclosure
Dimensions: 425×865×160 mm
Weight: 35 kg
Material: stainless steel, UV & corrosion resistant
Protection rating: IP54
Operating Conditions
Temperature: -25°C to +55°C
Humidity: 10–100% (non-condensing)
Power Supply
Average consumption: 250 W
Over-current and reverse polarity protection
Communication Interfaces
GSM / GPRS / EDGE
Ethernet
Localization
GPS compatible with vehicle locators & operator’s dynamic information system
Accessibility
Voice announcement button (installed on pole)
Automatic audio announcements
|
